In modern logistics, port terminals, and heavy-duty specialized transportation, automation and intelligence are key to enhancing efficiency and ensuring safety. Wuxi Newtech’s series of container straddle carriers and yacht transfer vehicles integrate advanced mechanical design, hydraulic transmission, and intelligent control technologies, providing efficient and reliable solutions for the industry. This article will offer an in-depth technical analysis of these two types of equipment.

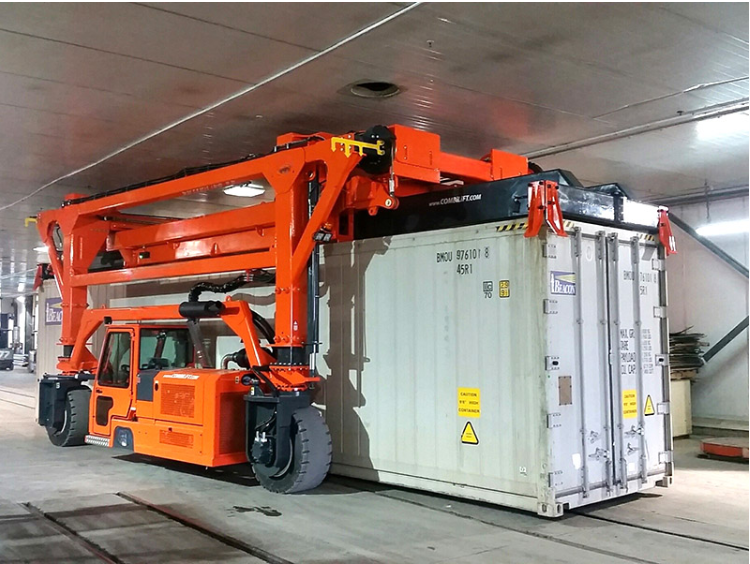

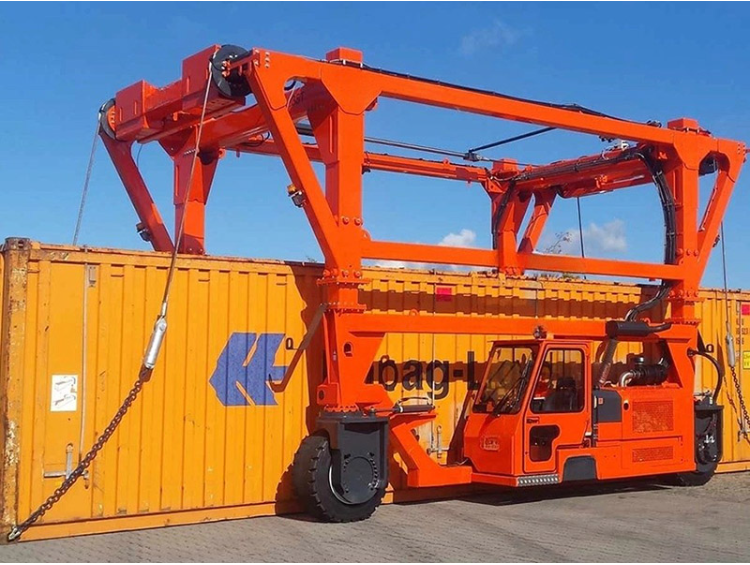

Chapter 1: Container Straddle Carriers – The Agile Hub of Port Logistics
The container straddle carrier is a highly efficient mobile machine that combines handling, stacking, and loading functions. Its gantry-style design allows it to navigate flexibly between container gaps, significantly minimizing intermediate handling steps in terminal operations.
1.1 System Architecture and Core Technologies
The technological advancement of the straddle carrier is reflected in its highly integrated system design, which primarily includes:
Power Transmission System: It employs a diesel engine-hydrodynamic transmission drive solution. This solution provides powerful torque output and smooth speed regulation performance, making it suitable for the frequent start-stop and heavy-load starting conditions typical of terminal operations. The single/dual main engine configuration options offer users flexible choices balancing control precision, maintenance convenience, and overall machine stability.
Intelligent Control System: Using a Programmable Logic Controller as the core, it enables precise monitoring and control of all movement parameters, including hoisting, travel, and steering. The integrated GPS guidance system is key to enabling intelligent scheduling and path optimization. It can provide data support for the coordinated operation of multiple machines, effectively enhancing the overall terminal efficiency.
Hydraulic Lifting and Synchronization System: The lifting system utilizes hydraulic cylinders to pull chains, providing powerful force. The technical challenge lies in resolving the synchronization issue under partial load conditions. The straddle carrier connects the lifting devices on both sides via a synchronization shaft, ensuring that the four lifting points of the container remain synchronized even under uneven load distribution, thus preventing damage to the container structure.
All-Wheel Steering and Travel System: The hydraulically controlled all-wheel steering system enables multiple modes such as straight-line travel, lateral travel, diagonal travel, and spot turning. This high degree of flexibility allows the machine to operate with ease even within the narrow aisles of a storage yard, significantly improving space utilization.
1.2 Analysis of Key Performance Parameters
The following technical parameters define the operational capabilities of the straddle carrier:
Dimensions & Load Capacity: The vehicle features a compact design (H≤6500mm, W≤6000mm) to adapt to dense yard operations. Its powerful rated lifting capacity of 80 tons covers the handling requirements for all standard and non-standard containers.
Speed & Gradability: The multi-speed design, with an unloaded travel speed of 0-7 km/h and a loaded speed of 0-3.5 km/h, balances efficiency and safety. The maximum gradability (6% unloaded, 3% loaded) meets the requirements of most port area ramps.
Structure & Safety: The main structure utilizes high-strength Q355B steel, achieving lightweight construction while ensuring rigidity and strength. The wire-rope + telescopic hydraulic cylinder spreader is equipped with safety lock and limit functions. Combined with a 360-degree video monitoring system, this creates a comprehensive safety guarantee.
| Overall Dimensions | Height (H) ≤ 6500mm; Total Length (L) ≤ 12000mm; Width (W) ≤ 6000mm |
| Spreader Lifting Type | Wire-rope + Telescopic Hydraulic Cylinder Spreader, with safety lock and limit device |
| Spreader Compatibility | 20ft, 40ft, 45ft containers, and non-standard boxes |
| Max. Curb Weight (incl. spreader) | ≤ 45 tons |
| Rated Load (under spreader) | 80 tons |
| Lifting Speed | Loaded: 0-3 m/min; Unloaded: ≤ 5 m/min |
| Travel Speed (Unloaded) | 0-7 km/h with multi-speed control |
| Travel Speed (Loaded) | 0-3.5 km/h |
| Gradability | Max. Grade: Unloaded 6% / Loaded 3% |

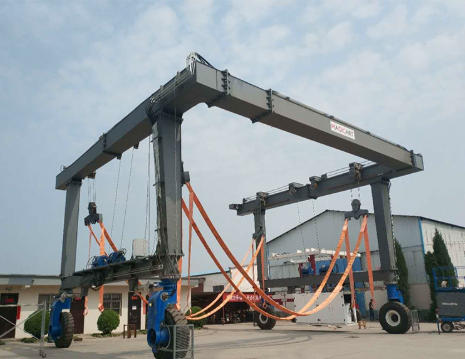

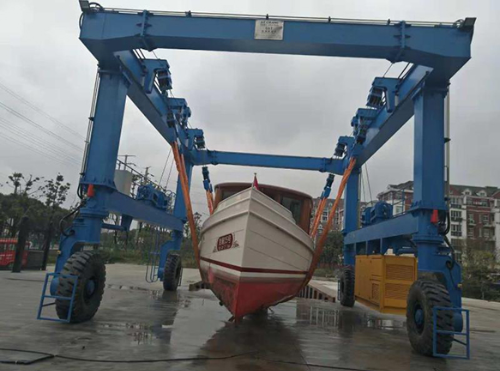

Chapter 2: Yacht Transfer Vehicles – The Integration of Precision and Flexibility
Yacht transfer vehicles are specialized equipment designed for handling high-value, irregularly shaped, and easily damaged vessels like yachts/ships. They demand extremely stringent requirements for synchronous control, load protection, and operational flexibility.
2.1 Targeted Technical Design
Dual-Beam Hook Structure & Multi-Point Independent Control: Unlike standardized containers, yachts have irregular shapes and variable centers of gravity. This design allows each lifting point to be raised or lowered independently or synchronously. The PLC enables precise adjustment of each point’s height, ensuring the hull remains in a stable, non-distorted stress condition.
Dedicated Protective Spreader: The standard wear-resistant slings feature a broad, soft contact surface that effectively disperses pressure, preventing any damage to the yacht’s expensive paintwork and hull.
Flexible Power & Operation: Utilizing PLC and variable frequency control enables seamless and smooth stepless adjustment of lifting and travel speeds, minimizing operational shock. Hydraulic drive is supported, and the power source can be either a diesel engine or cable connection, adapting to different working environments inside and outside the dry dock. Dual-mode operation via remote control and from the cab provides the operator with optimal visibility and flexibility.
2.2 High Degree of Customization Capability
The yacht transfer vehicle is not a standard product; its technical advantage lies in its powerful customization capability. Key parameters such as the load capacity range (10-120 metric tons), lifting height (2-18 meters), and equipment span (3-20 meters) can all be tailored according to the client’s specific site and yacht model, achieving a “one vessel, one solution” approach for precise compatibility.
Conclusion
The container straddle carriers and yacht transfer vehicles from Wuxi NEWTECH represent the company’s profound technical expertise in the field of heavy-duty intelligent handling. The former addresses efficiency bottlenecks in port logistics through integrated mechanical-electrical-hydraulic systems and intelligent control, while the latter overcomes the challenges of handling high-value, non-standard loads with its precise synchronous control and specialized spreader design. Although their application scenarios differ, both products are fundamentally built upon the same three core technological pillars: intelligent control, flexible operation, and high reliability, providing robust technical equipment support for modern industrial logistics.
